This 1351 System Controller provides 26 multi-function I/O for application in stand-alone or CAN connected systems. With ample user code space, OEMs can use the Model 1351 to develop a wide range of vehicle and system control applications as the manager or an ancillary in a multimodule installation. The 1351 System Controller was designed for a wide variety of applications, such as material handling vehicle managers, base controllers for aerial trucks, operator interface in man-up platforms, land based installation controllers replacing PLCs, ICE and Hybrid system controllers, hydraulic manifold control and many others.

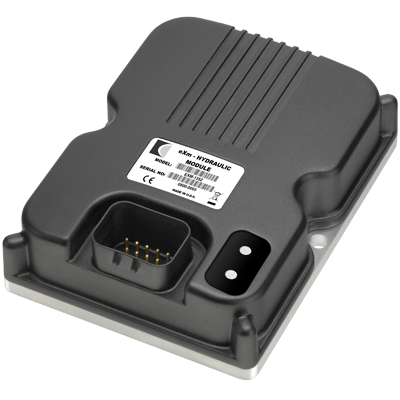

1352 eXM CANbus Hydraulic I/O Expansion Module
The Curtis Model 1352 eXM CANbus Hydraulic Input/Output Expansion Module can be added to any CANbus based control system utilizing the CANopen communication bus protocol. It provides a simple, flexible and cost effective method of controlling up to 6 proportional hydraulic valves, or can be used to connect additional digital and analog I/O to a CANbus system.
1353 eXM CANbus Hydraulic I/O Expansion Module
The Curtis Model 1353 CANbus I/O expansion module provides additional I/O capabilities to any CANbus vehicle control system. It allows accurate control of up to 9 proportional hydraulic valves, or can be used to expand a system's digital and analog I/O. Typically used on materials handling trucks, aerial lift platforms, airport ground support equipment, compact construction equipment and sweeper-scrubber floor care machines.
1355 Solid State Contactor Module
The Curtis Model 1355 is a compact and affordable solid-state alternative to electro-mechanical contactor panels. It offers fully programmable soft-start and current-limiting control of up to 5 brushed DC permanent magnet or series wound motors, via CANbus commands or direct digital inputs.
1356/1356P CAN Interface Expansion Module
The Curtis Model 1356/1356P CANbus I/O expansion module provides accurate control of up to 5 fingertip joysticks, or can be used to add additional digital and analog I/O to any CANopen* based control system. It is available as a conformally coated PCB (model 1356) or in an epoxy filled enclosure (1356P). *Contact your local Curtis sales office for SAE J1939 support options.
Curtis model 1360 is an easy to implement CAN isolation module. Powered off 12-24V DC, it’s typically utilized on systems operating on multiple voltages, isolating a CANbus running on one voltage from that running on another, eliminating bus noise and errors. The module contains optionally connected 120 ohm CAN termination resistors.
